Machine shop

EXPRESSIMO AUDIO

Machine shop

email brian@artisanwoodmetals.com
603 745 3030
Lincoln NH

Milling Machines / Lathe / Inspection gear / Welding and more

I have so many pictures this part of my site is under construction

Edge Innovation

FREE WILLY the KILLER WHALE Year 1992

I was the supervising machinist over looking all aspects of the machine shop.

	Tail parts	More tail peaces.		Here are more parts of the tail .
More tail parts.	Here I'm working on the Frame.	Boring out the hole for an insert.	It was a very late night. Walter was hoping everything would work out, and it did !!	Scott and I working on pressing new inserts in.
Mark the welder is welding everything up. This is the Frame of the Whale.	I'm working on the fins. You can SEE some of the parts I have made so far.	We had a testing water tank inside the building.	Here it is with most of the electronics wiring on the frame. The Whale was Computer controlled.	Now you can SEE everything coming together.

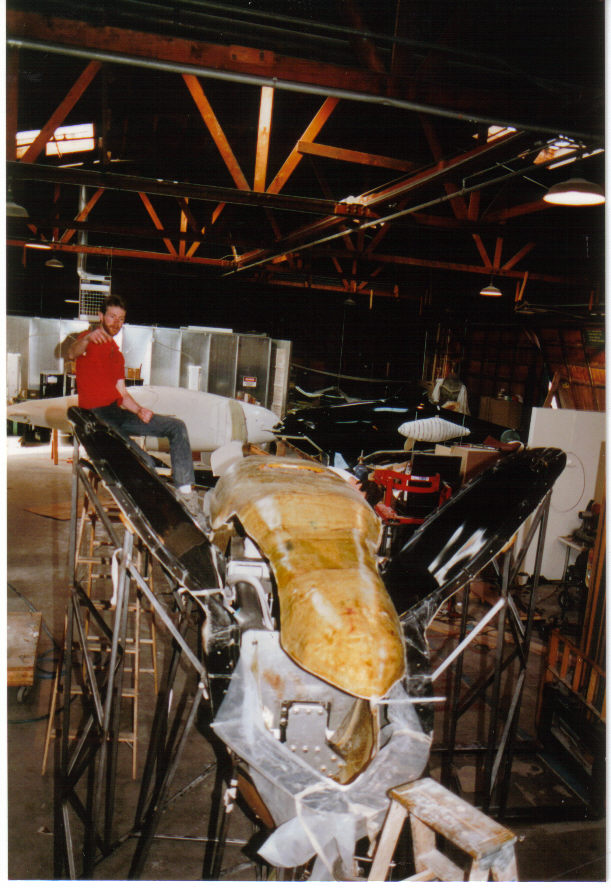

I made most of the Hydraulic manifolds you see. Everything was custom designed.	Now you can SEE the Tail	Steve is working on the core. You can see the frame work inside for testing.	Steve is washing down the mold and buffing it. The outside of the whale.	Dry fitting the frame with the fins.

The core is DONE. Time to go inside the mold.	They are ready to pour the Rubber in to the Mold. SWEET	Mixing the rubber.	I had to put a whole machine shop in a tracker trailer and document everything for the ride to Mexico.	Wow, they had to crane everything in Mexico, there are NO paved roads at the filming site.
The whale had to be out of the SUN.

Working on 19" Leblond Lathe

Stub Axles for race car

Stainless Steel 316L
Body rings for race car

CPVC Centering top plates

Manifolds

I have been machining back to back parts my entire Life.
Then bandsaw in half.
Every part I make in concentric. Single point threading .

I am using double indicators
for close Tolerances

Teflon tricky material to work with. Made a CPVC plug so I could turn around to do second side with angle.

Tooling Making
angled thread relief
Red Turcite

White Delrin
Single Point Thread

My DRO will hold 50 tool Datum's

Purple Delrin

SineJaw

Please READ and LOOK below

I was a partners with my father at his machine shop and outside Sales.
My father invented a Tool for the Machine Shop Industry called ( Sinejaw ).
The tool was used for machining angles in a Vise or inspecting parts. We made everything in house.
I would go to the Industrial Machine Conventions and Sell SINEJAW and do very well.
Super Tight Tolerance.
This was just before CNC took over the machining Industry.
Year 1990

Plastic PVC CPVC, Polypro and Kynar nozzles for the food industry

www.expressimoaudio.com/nozzle.html

CPVC Nozzle 4 holes

PVC 4 Hole Inner Tube

Kynar and PVC

Outer Tubes

PVC Inner Tube

Anti Foam Port Tipped Nozzles

Jar Cleaner

All Part here Machined by me. 30% designed by me

Here you can see Single point threading Right hand Left hand. Moves plates in and out.

The top plates are chain driven
to lower and raise plates

Kynar Inner Tube

Kynar Outer Tube

Kynar Cups

PVC Micro Adjusters
in Fine and Course Thread
Single point threading

PVC and CPVC Centering Devices

White Delrin
Centering Devices

Video of me building a

Over flow machine

Machining
Purple Delrin
Video

Video
Manifolds
Turning on
19" Leblond

High End Audio

Everything below was designed by ME

Brass 3.5 gram Head shell weights
Copper & Alum Volume Knobs	Brass VTA Knob Brass VTA Locking screw	One Piece Brass Azimuth Bolts	Brass end post for VTA Tower and Brass arm post
BBrass Pulley Brass Lower plate for motorra	Copper Alum Volume Knob		Brass Center Topper
The Lower tower arm is Silenced Expressimo's Silencer top and bottom

90% is all fuse Tig Welding LOVE IT

Tig welding is an ART
